TEII Series All Electric Injection Molding Machine(90T-460T)

TEII series all-electric injection molding machines have TE II all-electric and h-TE Il hybrid share platforms. Their clamping units have high-rigidity templates to stabilize the product and better protect the mold. The popular modulus design can meet the mold installation needs; Optional linear rail support makes movement lighter. The modular design of the injection unit can adapt to various working conditions. Has a humanized interactive interface.

TMII Servo-Driven Injection Molding Machine(90T-470T)

The TMII servo injection molding machine combines the concept of "injection molding process integrated machine", which can realize the linkage of one control interface with multiple devices, and has the function of automatic compensation at the mold opening position, and cooperates with the injection molding robot for precise grasping. Real-time feedback of communication allows the entire injection molding process to be controlled in one piece, and can form dense plastic products with complex appearance, precise dimensions or metal inserts in one go.

TH Series Direct Press Type Injection Molding Machine(130T-2800T)

TH Series Direct Press Type Injection Molding Machines are divided into two series: small and medium and large. Both series feature standardized clamping and injection platforms. The design adopts a two-plate direct pressure center clamping structure to provide the maximum mold opening stroke. This configuration meets the production requirements for large-format, deep-cavity products and is suitable for automatic part-picking applications.

TS Series Toggle Hydraulic Injection Molding Machine(90T-650T)

The TS Series Toggle Hydraulic Injection Molding Machine adopts advanced oil circuit design and is equipped with a professional controller, which enables stable machine movement, high product yield, and fast response speed. At the same time, the oblique row double injection cylinder and linear guide rail are used to make the glue injection more accurate and stable. The screw is made of high-performance nitrided steel, which is durable and efficient, and has wider applications.

TMII-PET Series Injection Molding Machine(170T-470T)

TMII-PET series injection molding machines are designed for precise and fast production of high-quality preforms. The preform injection molding machine series excels in speed, professionalism and efficiency. It is a high-rigidity, high-efficiency, energy-saving, and matching injection molding solution.

GMU800 Series 5-Axis Machining Centre

GMU600 Series 5-Axis Machining Centre

The GMU-600 5-axis machining center adopts a crane-type structural design and an integral high-specification cast iron bed to ensure rigidity and stability. The X/Y/Z linear axes run on the bed, and the weight of the workpiece will not adversely affect the dynamic performance of the linear axes. The moving parts are far away from the cutting processing area, effectively reducing the failure rate of the moving parts. The A/C shaft is simply supported on the left and right vertical walls of the bed to achieve the best support rigidity.

DMU400 Series 5-Axis Machining Centre

HMU140P Horizontal 5-Axis Machining Centre

The HMU140P horizontal 5-axis machining center is dynamically optimized by FEA to ensure the high rigidity and stability of the whole machine. Equipped with the high-rigidity, high-torque gear turntable and single-swing milling head independently developed by Evermi, the HMU-140P can easily cope with the high-efficiency and high-precision machining needs of parts made of various materials. Multi-face milling can be achieved through one-time clamping, significantly shortening the machining time. At the same time, the use of advanced tools and high-speed machining technology greatly improves production efficiency.

V856 Vertical Machining Centre

GU Series AC Servo Injection Robot

The fifth generation of "five-in-one servo-driven injection robot" has achieved hardware precision energy saving and software integrated communication through the upgrade of core component technologies such as control system and servo drive. It is suitable for injection molding machines with a clamping force of 30-450T, can grab loads of 3kg-8kg, and is equipped with fixed and open operating systems.

Drying and Dehumidifying System

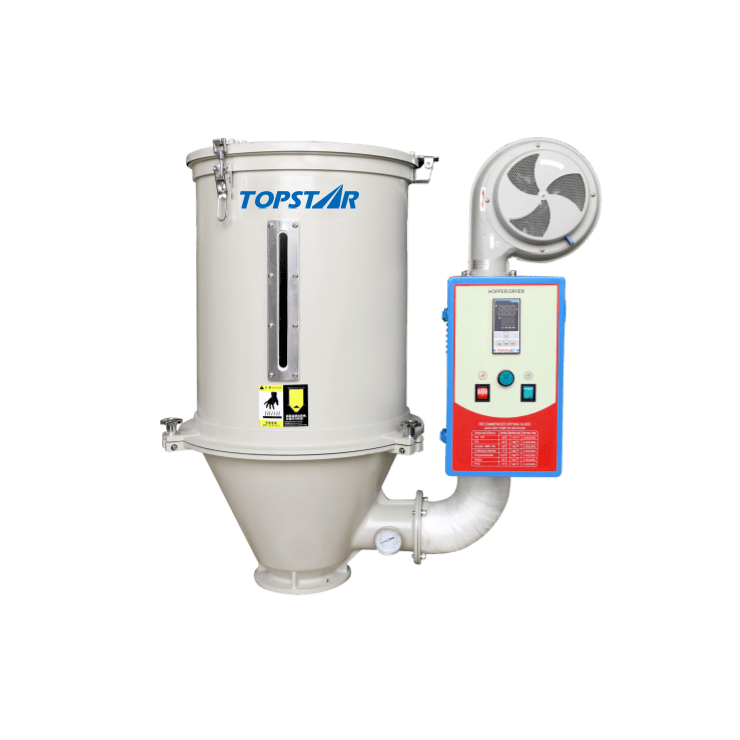

Hopper Dryers are primarily utilized for the drying of plastic materials. They employ hot air to effectively dry all moisture-laden materials, ensuring a uniform hot air flow to enhance the drying efficiency and maintain the quality standards of the end products.

Feeding and Conveying System

Stainless steel (corrosion free) single hopper loader is designed to provide rapid transportation of free-flowing for virgin resin or regrind resin directly to the injection molding machine. The design of the hinged upper cover of the vacuum motor ensures quick cleanup time and easy maintenance.

Four-Axis Scara Robots

The independently developed four-axis SCARA robot is equipped with a precise integrated drive and control control system. Combined with a customized visual module, it can achieve rapid automatic calibration of the robot and is easy to operate. It has been optimized in appearance and function, with a smaller base size to save more space. The arm length can be selected from 300-700mm, which can meet the complex production processes and high-speed production requirements of 3C, packaging, medical and other industries.

EU Series AC Servo Injection Robots

The EU Series represents the latest advancement in fully servo-driven linear robots designed for injection molding machines. This cutting-edge series is characterized by high-speed performance, exceptional precision, and robust rigidity.

AD Series AC Servo Injection Robots

Advantages: High efficiency, High Precision, Reduce Cost, High Safety.
Injection mould clamping force range:100~300ton
Single-axis AC servo robots are widely used in horizontal injection molding machines with clamping forces of 100 tons to 300 tons.

MEW Series AC Servo Injection Robots

The Three/Five Axis AC Servo Driven Robots are well-suited for horizontal injection molding machines ranging from 75T to 1300T. They are designed for the efficient removal of finished products and sprues, particularly those with elevated demands for appearance and precision.

Six Axis Industrial Robots

The six-axis industrial robot has a lightweight body, an arm length of 715mm/912mm/1450mm/1813mm, and can bear a load of 7-35kg. The standard cycle time is less than 0.36 seconds, which meets the pursuit of maximum output in the shortest cycle time. The floor area is 180mmx180mm. It delivers maximum performance with a minimum footprint. Minimum working radius: 145.6 mm, reducing the footprint of the base space and ensuring a compact layout. It is mainly used in high-precision and precision production scenarios such as 3C electronics, and is used in assembly, pick and place, loading and unloading, tool operations, etc.

Mold Temperature Controller

As an essential auxiliary equipment, Topstar's new fourth-generation mold temperature controller has standard functions such as fast heating, stable temperature, and low water leakage. It can meet the needs of industry customers for intelligent and digital upgrades, solve the temperature control problem of injection molding production, and has a temperature control accuracy of ±0.1℃, which improves the temperature control efficiency by 10% and increases the service life by 40%.

Auto Cooling System

Air Chillers adopt fin condensers (without the need of cooling water) with the features of rapid heat transmission and excellent heat dispersion. This series can be afforded cooling ranges from 5~35℃ (temperature-controlled accuracy at ±2℃); the compressors' power ranges from 5HP~50HP and cooling.

MDE Series AC Servo Injection Robots

The Three/Five Axis AC Servo Driven Robots are well-suited for horizontal injection molding machines ranging from 75T to 1300T. These robots are designed for efficiently handling the removal of finished products and sprues, especially in scenarios where elevated standards for appearance and precision are essential.

T6L Series Drilling Centre

MBW Series AC Servo Injection Robots

The Three/Five Axis AC Servo Driven Robots are well-suited for horizontal injection molding machines ranging from 75T to 1300T. These robots are specifically designed for the removal of finished products and sprues, catering to applications with elevated demands for both appearance and precision.

Sprue Picker Injection Robot

Advantages: high efficiency, high precision, reduced cost, high safety. Injection molding clamping force range: 80~150 tons. Swing arm manipulators are widely used in horizontal/vertical injection molding machines of 50T~250T. They can quickly remove runners, runners, and finished products from the injection molding machine mold, and place the runners or runners next to the mold.

HDW Series Injection Robots

The Three/Five Axis AC Servo Driven Robots are highly suitable for horizontal injection molding machines within the 75T to 1300T clamping force range. These robots efficiently extract finished products and sprues from the molding process. Their application is particularly crucial in scenarios where heightened standards for appearance and precision are paramount.

Parallel Multi-Joint Robot

It realizes the fast following, grabbing and placing of the conveyor belt, which is widely used in food, automobile and other industries; it has the characteristics of large load, fast speed and stable structure.

Dosing and Mixing System

It is suitable for accurately weighing and mixing 2 to 6 raw materials such as new materials, recycled materials, masterbatch, and various additives. According to the preset proportion mixing, the required rotation speed (rpm) is automatically calculated through the conditions set by the microcomputer control system, and the measurement is accurate with an error value of ±1%.

Granulating and Recycling System

Mainly used for crushing nozzle materials at the machine side. It is suitable for recycling all kinds of hard and brittle plastic nozzles. It is especially suitable for crushing and recycling hard nozzle materials such as PC, nylon, and ABS. It adopts a screen-less design, and the crushed particles are even and the dust content is low. Very rarely, the feed hopper adopts a double-layer sound insulation design, the inner layer is made of stainless steel, and has a visual material window.
