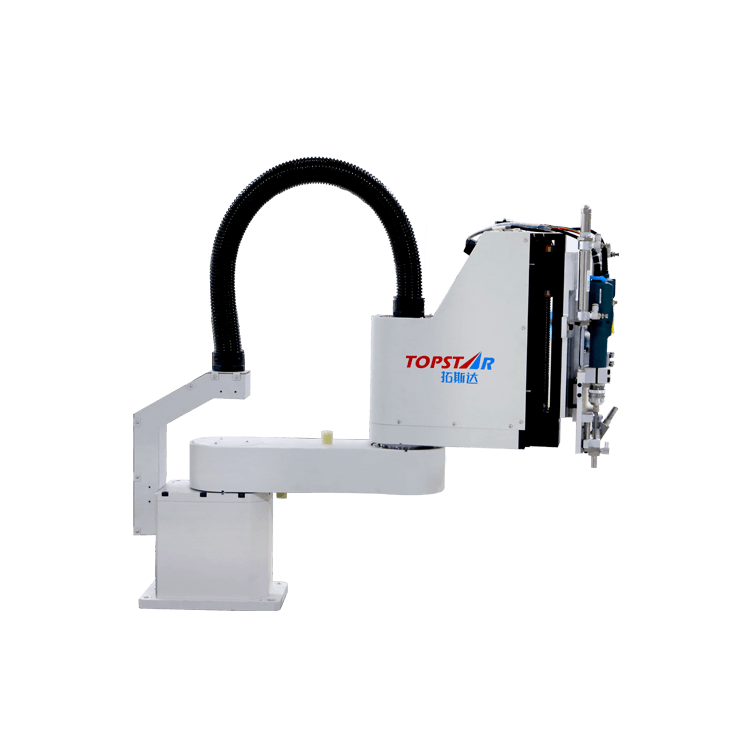

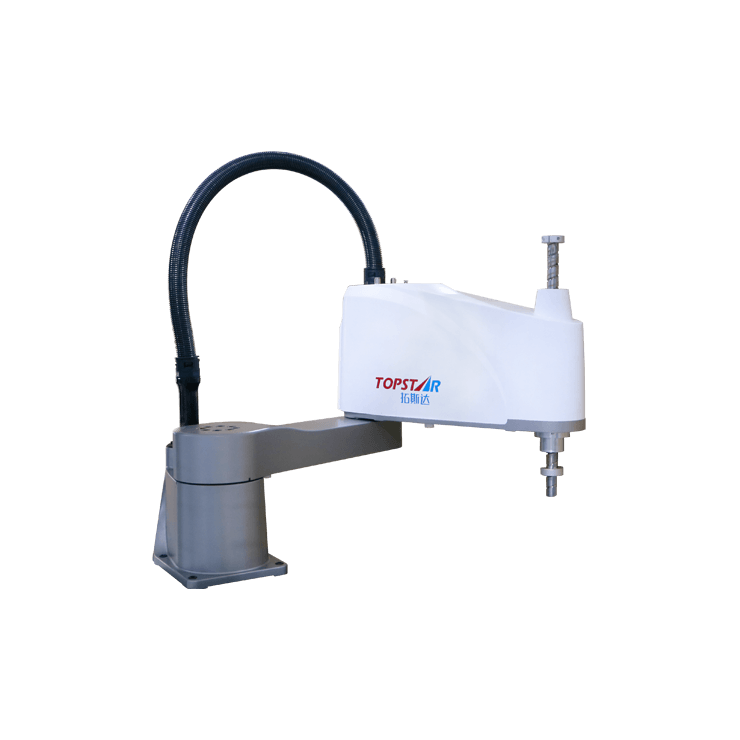

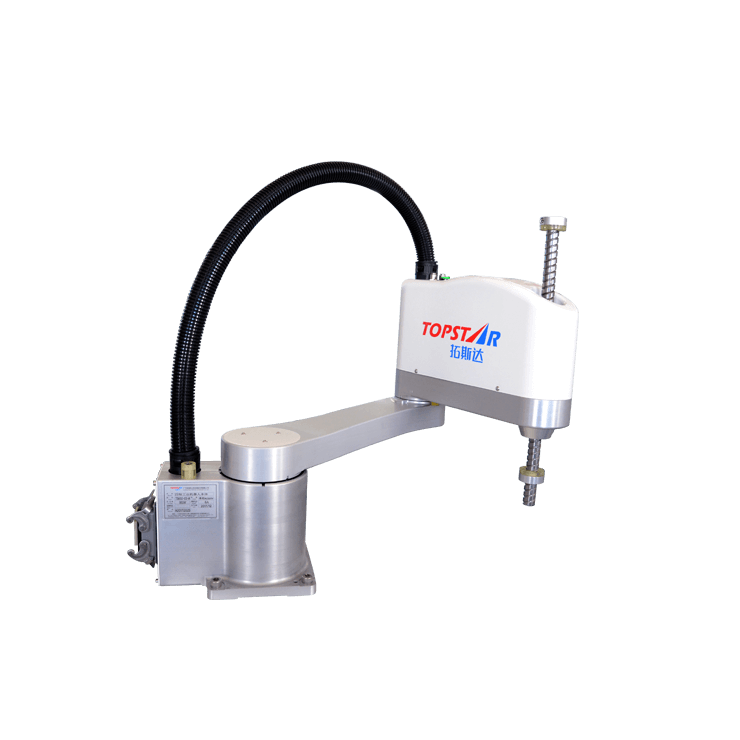

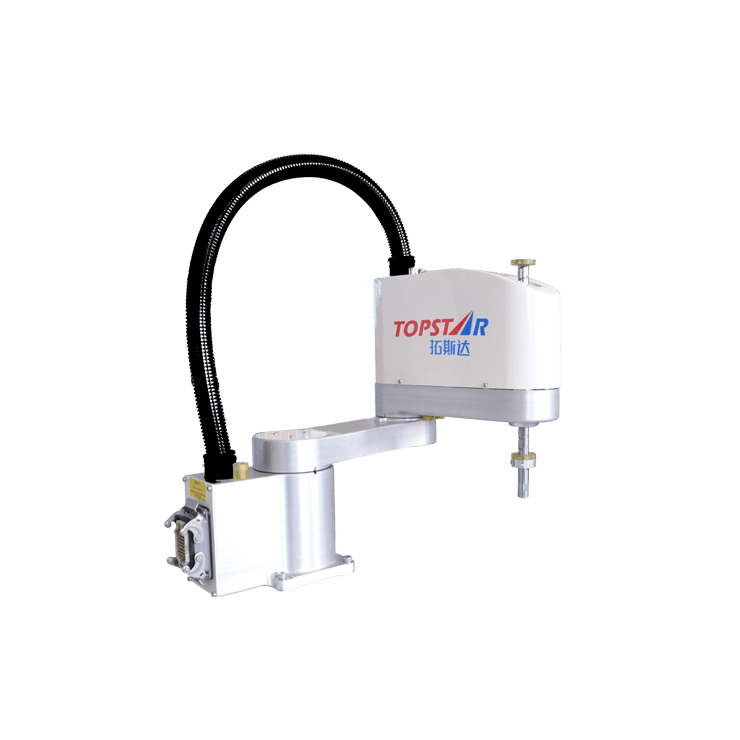

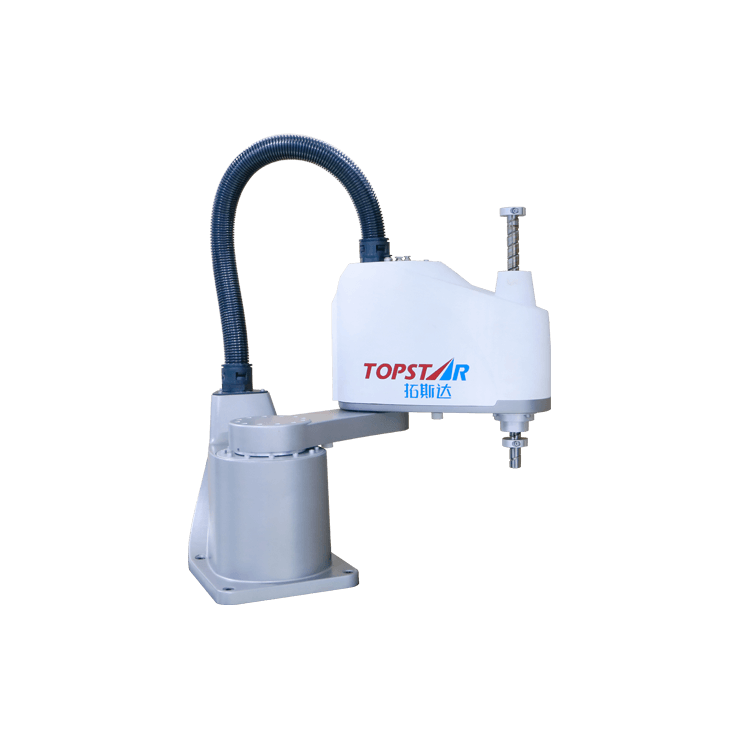

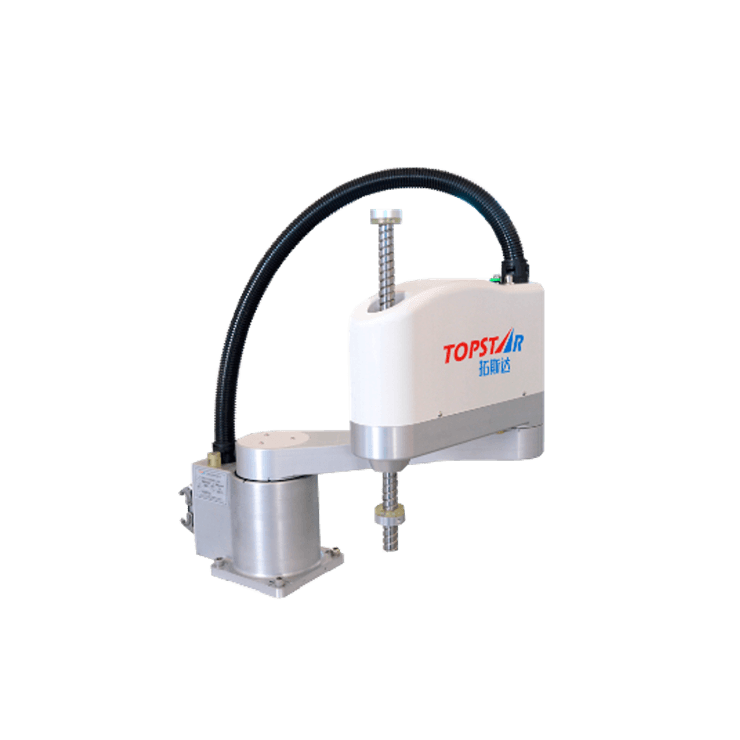

Four-Axis Scara Robots

The independently developed four-axis SCARA robot is equipped with a precise integrated drive and control control system. Combined with a customized visual module, it can achieve rapid automatic calibration of the robot and is easy to operate. It has been optimized in appearance and function, with a smaller base size to save more space. The arm length can be selected from 300-700mm, which can meet the complex production processes and high-speed production requirements of 3C, packaging, medical and other industries.

Characteristics

Using TOPSTAR’s self-developed controller, the cycle time can reach 0.25s under a load of 2KG, and the beat frequency is increased by 33%. The acceleration time is reduced by 20%, the work efficiency is higher, and the speed is faster. The overall equipment stability is stronger, and the time from high-speed operation to equipment stopping is shortened by 25%.
Repeat positioning accuracy is ±0.01mm, the rotation gap is within 1 arc minute, the trajectory accuracy is increased by 35%, and the degree of refinement is higher, which effectively solves the problem of operation limitations in more users’ actual application scenarios.
The rated load is 2kg, the maximum load is 5kg, the maximum allowable inertia is increased by 50%, and the operation capability is high speed and high load.
A simple and intuitive software system provides more convenient operation, while the thin body reduces air resistance, smoothes movement, reduces space occupancy and meets user habits in a variety of application scenarios.
Fully consider the convenience of maintenance, which can effectively reduce the time spent troubleshooting and maintenance.

Application Industries

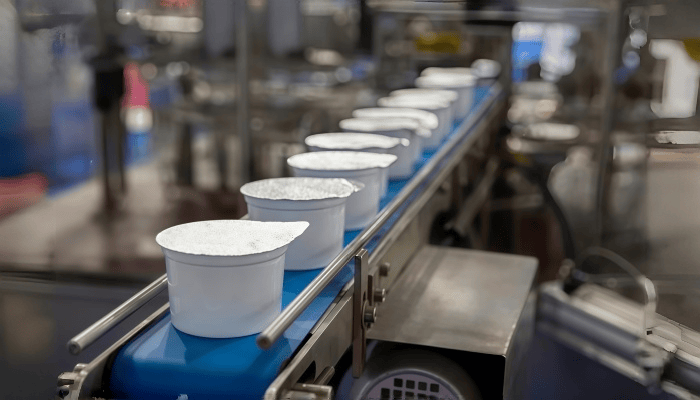

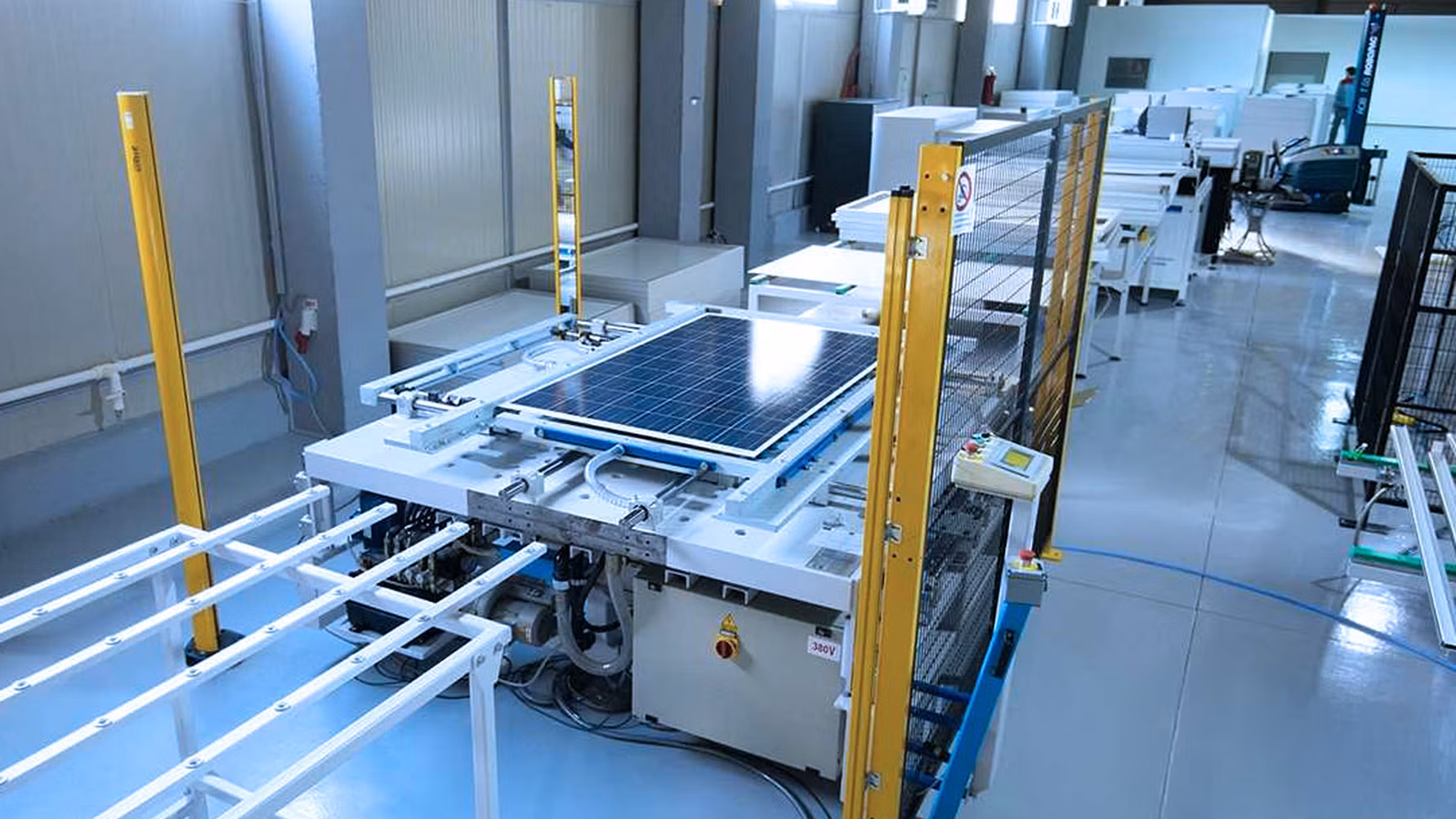

It is used in 3C, packaging, new energy, automotive parts manufacturing, 5G, optoelectronics, household appliances and other fields.

Send Inquiry Category Brochure

Adequate supply of goods, available for delivery within 35 days.

Description

Topstar's four-axis SCARA robot can be configured according to different application requirements, with optional arm spans of different lengths (300-1000mm length) and other types of wrists and end effectors. This flexible configuration allows the robot to adapt to various production lines and work environments. It adopts an efficient drive system and precise control algorithm to make its performance stable and achieve accurate and stable motion control. The four-axis SCARA robot is lightweight, compact, and highly precise. Compared with other types of robots, it takes up less space and is suitable for work environments with limited space. At the same time, the robot itself is easy to install, move, and adjust its position. Widely used in electronic manufacturing, automobile manufacturing, 3C, lithium batteries, PCB, and other fields.
